Colony Ridge Ditches Violate Liberty County Drainage Standards

Drainage ditches in Colony Ridge appear to violate Liberty County drainage standards from both 2004 and 2019.

  • Both 2004 and 2019 regulations require developers to plant the slopes of ditches with grass to control erosion.
  • In addition, 2019 regulations require backslope interceptor swales, another erosion-control measure. These prevent stormwater from running down the sides of ditches.
  • According to residents, the developer has made little effort to do either or to bring older ditches up to current standards.

The violations contribute to sedimentation of the East Fork San Jacinto and its tributaries, and flooding from Lake Houston to Plum Grove.

Soil-Stabilization Violations

2004 Liberty County Road and Drainage Standards for Subdivisions and Development stipulate in Section 3.72 on Page 28 that, “All channels, and adjacent area, which has been disturbed by construction equipment shall be seeded with Bermuda grass or other grass as approved by the Precinct Commissioner or Designated Agent at the rate of eight pounds per acre (8 lb/ac). Seeding shall conform to Item 164 Seeding for Erosion Control of the “TxDOT Standards”.

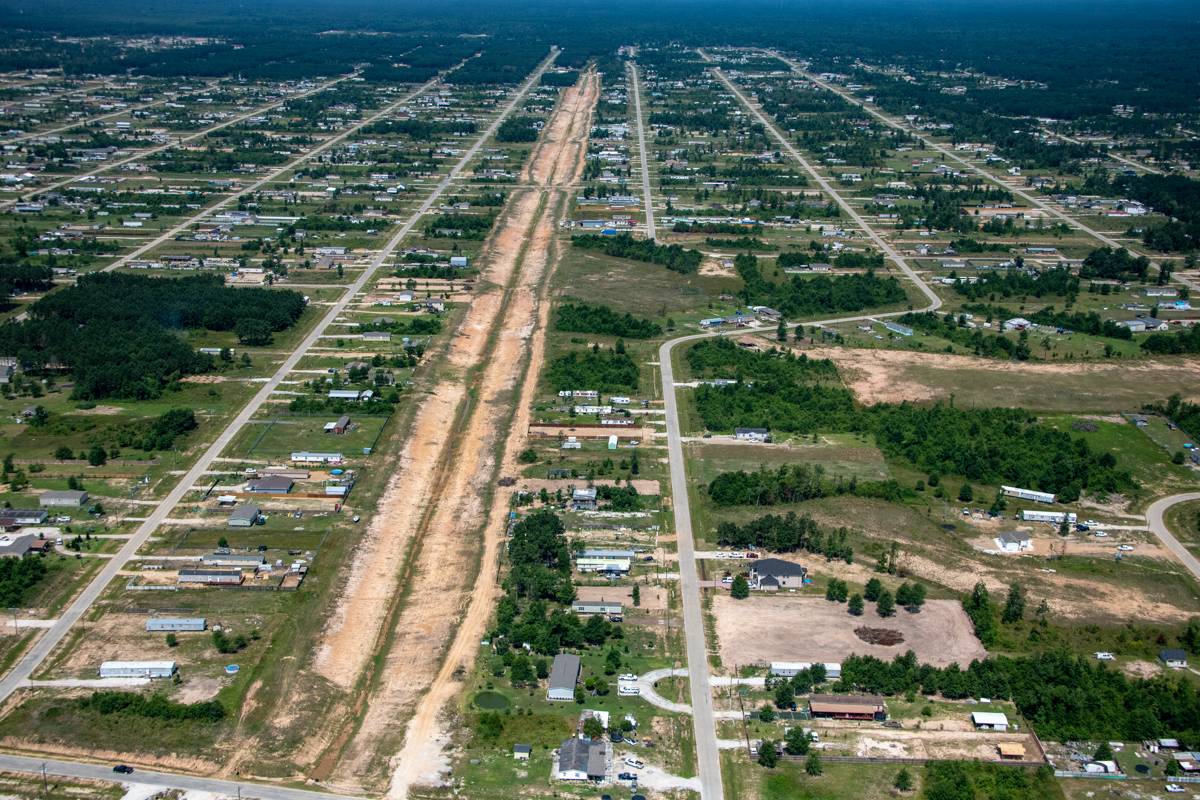

Note erosion on sides of ditches. Colony Ridge 6/16/2020

Liberty County’s Subdivision and Development Regulations, revised January 2019 contain the identical language on slope stabilization. See Section 40.9.11 Channel Excavation (Page 91).

Backslope Interceptor Swale Requirement

2019 regulations also mandate additional erosion-control measures. The section on Erosion Control on page 100 states: “All drainage facilities must be designed and maintained in a manner which minimizes the potential for damage due to erosion. No bare earthen slopes will be allowed. Various slope treatments, including turf establishment, concrete slope paving, and rip-rap, are accepted. Flow velocities should be kept below permissible values for each type of slope treatment. Interceptor structures and backslope swale systems are required to prevent sheet flows from eroding the side slopes of open channels and detention facilities.” [Emphasis added.]

The emphasis on “All” and “maintained” would seem to require developers to bring all ditches up to the 2019 standard, but that clearly has not happened.

Colony Ridge 6/16/2020. Note severe erosion, lack of grass on slopes and absence of backslope interceptor swales.

What Backslope Swales Look Like

Liberty County regulations don’t provide schematics of backslope interceptor swales, but Harris County Flood Control regulations do. See below. At the top of the ditch embankment, a notch is cut into the horizontal area. This notch collects rain and channels it to a series of corrugated metal or HDPE drains that empty into the bottom of the channel. This prevents water from pouring over the banks of the channel and eroding them.

Courtesy Harris County Flood Control District. For photo, see second to last image below.

Stark Contrast Between Regulations and Reality

As you look at the pictures below, see if you can spot the:

  • Backslope swales (notches)?
  • Drain pipes?
  • Grass-lined banks?

You can’t. They aren’t there.

Colony Ridge 6/26/2020. Note severe erosion on banks. This ditch was built in 2015.
Colony Ridge 6/26/2020
Colony Ridge ditch draining into Maple Branch. 4/25/2019.
Colony Ridge 6/14/2020 in newly developing area.

Properly constructed backslope interceptor swales constitute a best management practice (BMP). They can prevent the type of erosion you see above. This educational PowerPoint explains how these structures work as well as the dangers of not building them correctly.

But construction technique does not seem to be the problem in Colony Ridge. They simply have not been built. That’s why erosion on the sides of the channels is so rampant.

Consequences of Erosion

All this eroded sediment has to go somewhere. And it did.

Between Kingwood and Huffman, the East Fork Mouth Bar downstream from Colony Ridge grew 4000 feet during Harvey and Imelda. Average water depth through this area decreased from 18 feet to 3 feet.

Colony Ridge isn’t 100% responsible for ALL this sedimentation. Natural erosion and sand mines also contributed. But substandard drainage practices in a 12-13,000 acre development had to play a large role.

The City of Houston is still dredging the West Fork Mouth Bar, more than three years after Harvey. Cost to taxpayers to date: more than $100 million. No one yet knows how much it will cost to remove the East Fork Mouth Bar.

Plum Grove residents have also documented clogged streams and bayous that they say have contributed to local flooding. Plum Grove is suing the developer. The TCEQ found construction practices bad enough to affect human health.

It seems like prevention would be more effective than correction.

The Right Way

Ironically, Harris County has regulations similar to Liberty County’s that govern construction of drainage ditches. But the results are much different when and where people actually follow the regulations. See below.

Backslope interceptor swale on Taylor Gully in Harris County. 12/4/2020
Taylor Gully in Harris County 9/7/2020.

Posted by Bob Rehak on 12/5/2020

1194 Days since Hurricane Harvey and 453 since Imelda

The thoughts expressed in this post represent opinions on matters of public concern and safety. They are protected by the First Amendment of the US Constitution and the Anti-SLAPP Statute of the Great State of Texas.

Flood of Foreclosures: Hundreds to Lose Colony Ridge Homes Tomorrow

Wayne Dolcefino, investigative reporter extraordinaire, posted a followup story today to his Thanksgiving expose of Colony Ridge, the world’s largest trailer park in Liberty County. It’s about a flood of foreclosures.

More than 200 Foreclosures Before Christmas

“More than 200 families will lose their land and homes Tuesday as the controversial developer in Liberty County continues mass foreclosures,” says Dolcefino. “Nearly 97 percent of foreclosures in the county are now linked to a neighborhood housing a growing number of illegal immigrants.”

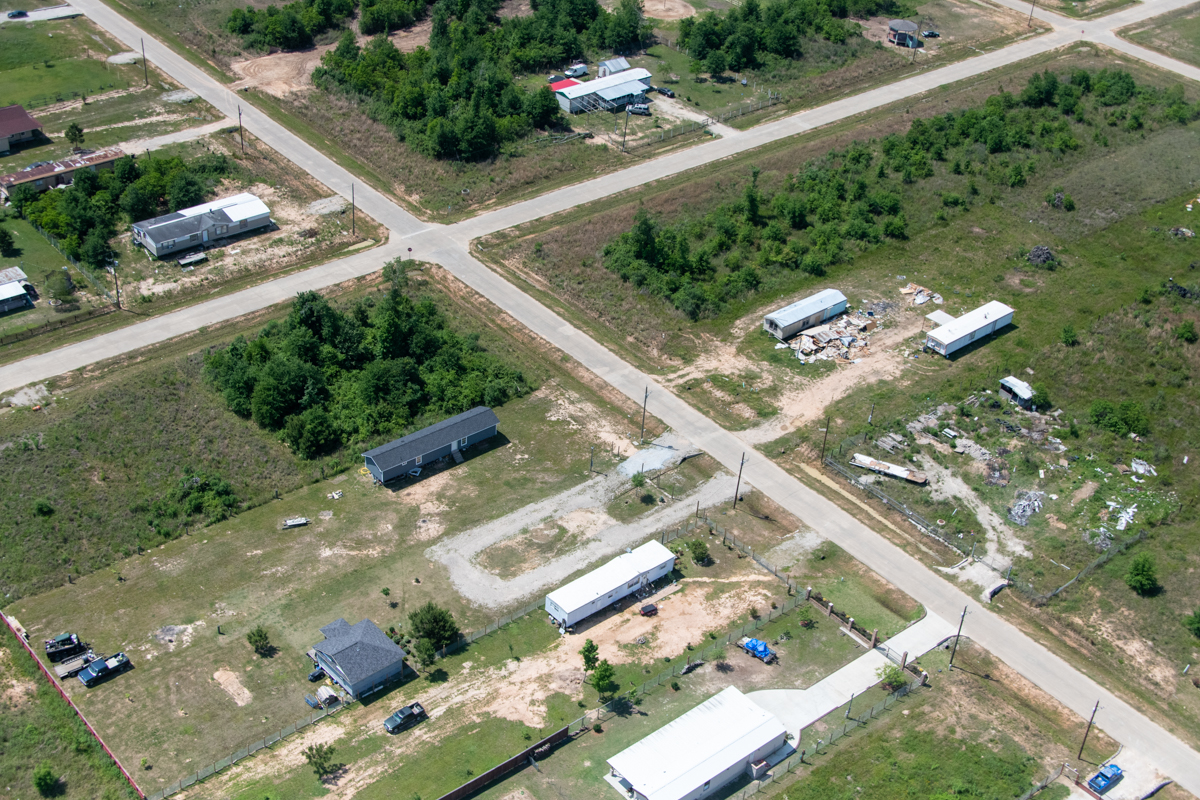

A small part of 13,000-acre Colony Ridge in Liberty County. Photographed last spring.

One in Eight Colony Ridge Lots Foreclosed on This Year

The developer foreclosed on more than 2,700 properties before Thanksgiving this year, according to Dolcefino. With another 200 on the auction block tomorrow, that will make 2,900 – out of a total of 22,356 properties (according to the developer’s website). That’s about 13% of all the lots in Colony Ridge, foreclosed on in ONE year. More than one in eight!

According to Dolcefino, the foreclosure auction should take place on the steps of the Liberty County Courthouse from 10 to 1 tomorrow. Dolcefino caught the developer’s employees faking an auction last time.

Colony Ridge So Far Has Managed to Repurchase Every Foreclosure

Dolcefino also says that Colony Ridge has repurchased 100% of the lots it has foreclosed on. Thus, the developer sells and resells the properties many times over in a revolving door arrangement.

Colony Ridge boasts that they finances land transactions themselves. The developer makes it exceedingly easy to purchase the property with down payments as low as a few hundred dollars. But then he charges up to 13% interest rates on the balance. And the fees for water and sewage hookups can be astronomical.

No wonder the developer and his team (a bunch of ex-boxers) have an undefeated record. It’s the perfect combination punch for unsophisticated buyers, many of whom barely speak English: a down-payment jab followed by uppercut interest rates, roundhouse fees, and the knockout at the County Courthouse.

Posted by Bob Rehak on 12/1/2020

1190 Days since Hurricane Harvey

Colony Ridge Declares War on Investigative Journalist, Too

Not long ago, Colony Ridge, the world’s largest trailer park, went to war with the City of Plum Grove. Now they are taking on Wayne Dolcefino, one of the nation’s leading. investigative journalists, too.

Somebody needs to tell Colony Ridge developer Trey Harris to give his employees some media training. When Dolcefino set his sights on Colony Ridge, several employees greeted him with hostile language. The word “threatening” comes to my mind. Surely they should know that this will only focus more media attention on their dubious business model.

Dolcefino Credentials

Dolcefino and his television shows have won:

  • Thirty Emmy Awards from the National Academy of Television Arts and Sciences
  • Five Charles Green Awards
  • An Edward R. Murrow award
  • A Jack Howard Award for investigative reporting
  • Numerous honors from the Associated Press and Texas Association of Broadcasters
  • An unprecedented three medals from the international journalism organization Investigative Reporters and Editors.

So it was ironic that Dolcefino titled his latest piece on the war between Plum Gove and Colony Ridge an “Unfair Fight.” If you want to see one of the nation’s top journalists at the top of his form, check out this story.

Unfair Fight

Colony Ridge’s land clearing practices, erosion, and lack of workable detention ponds, have contributed to sedimentation in the East Fork watershed. The developer’s wastewater treatment vendor has also been cited numerous times by the TCEQ for discharging raw sewage into area streams.

But Dolcefino goes way beyond those problems. Check out the revolving-door foreclosures, fake foreclosure auctions, and predatory lending practices that target the vulnerable.

Posted by Bob Rehak on 11/27/2020

1186 Days after Hurricane Harvey

The thoughts expressed in this post represent opinions on matters of public concern and safety. They are protected by the First Amendment of the US Constitution and the Anti-SLAPP Statute of the Great State of Texas.

Flood Notes: Highlights of Current Happenings

Welcome to Flood Notes. So much has been happening lately on the flood front, it’s hard to keep up with it all. So this post will be a digest of things that affect flooding on the local, state and national fronts.

TCEQ Sand Mine Rule Making

The Texas Commission on Environmental Quality (TCEQ) held a stakeholder meeting yesterday about sand mines in the San Jacinto River watershed. TCEQ intends to post video of the meeting as well as stakeholder presentations here, but they have not yet done so. In the meantime, those who wish to see a summary of the meeting can find one here. And those who wish to make public comments can do so by emailing Outreach@tceq.texas.gov.

Humble ISD North Transportation Center Construction Update

We have had ideal construction weather in the last month and contractors at HISD’s north transportation center on Ford Road in Porter had made a lot of progress. They have completed the detention pond. More than half the remaining site is covered with concrete parking lots. And it looks as if the foundation for a building has also been poured. Humble ISD anticipates shorter routes for half the district will save taxpayers $2 million per year. The District hopes to open the Center in 2021.

Humble ISD North Transportation Center 11.7 acre site. Photo taken 11/07/2020.

Colony Ridge

This massive development in Liberty County has turned into the world’s largest trailer park. The developer of Colony Ridge keeps expanding at a record clip. Perhaps he’s anticipating a sales boom when the Grand Parkway creates better access. At the moment, he appears to be cutting and burning another 3000 acres. Nearby Plum Grove residents have complained about the smoke.

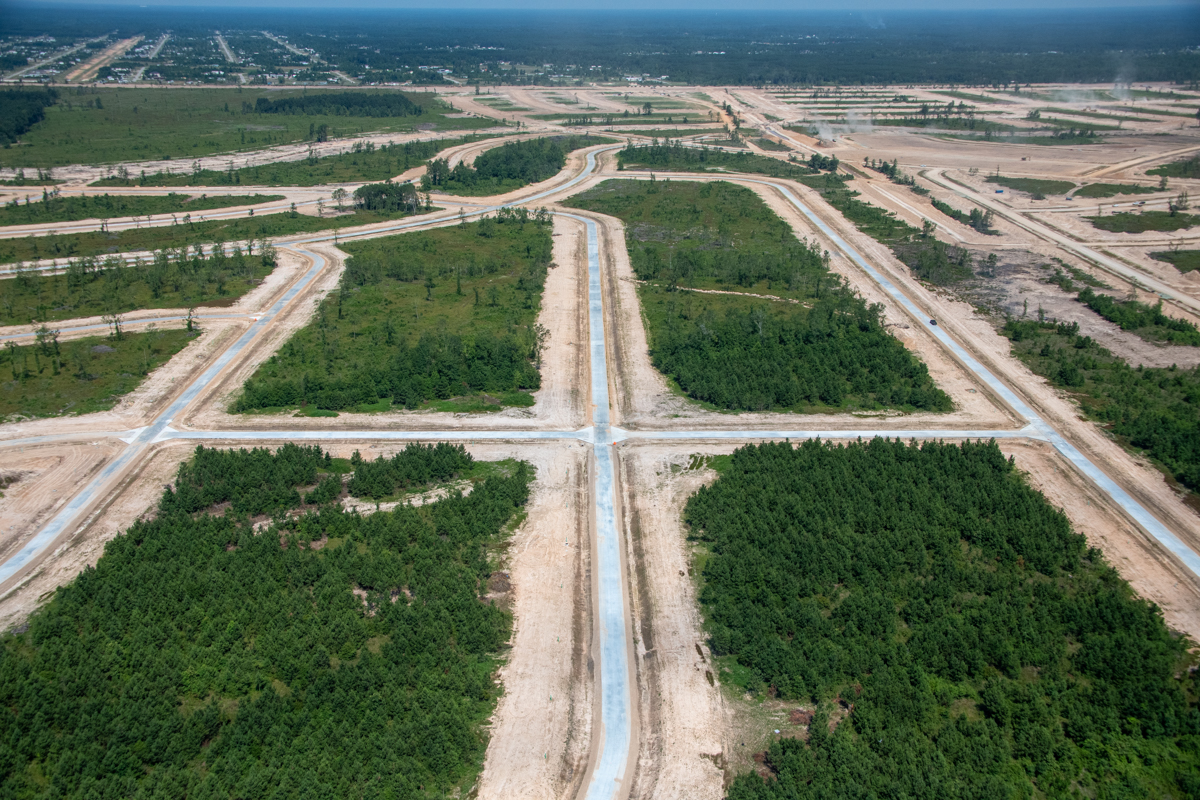

Colony Ridge expansion. Photo taken 11/1/2020.
Colony Ridge expansion. Photo taken 11/1/2020.

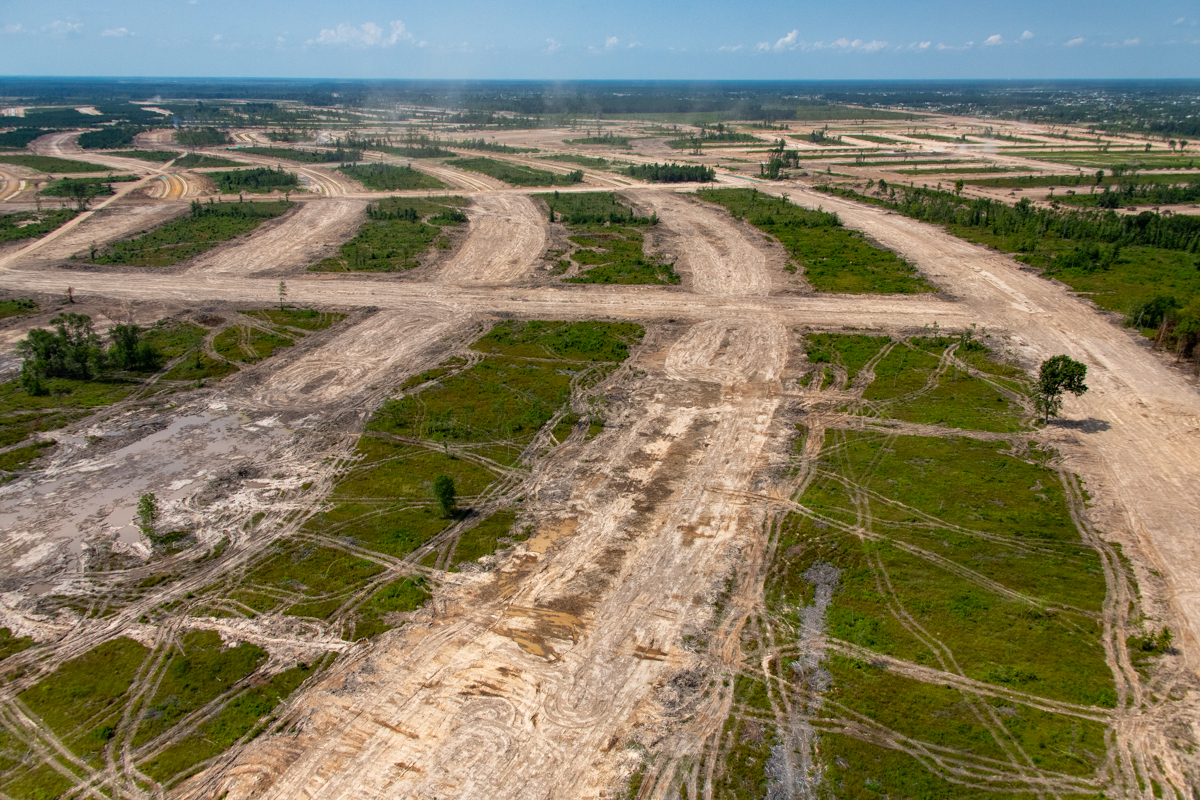

Colony Ridge expansion. Photo taken 11/1/2020 after a long period without rain. Notice the wet areas covered up with fill. Wetlands once criss-crossed this area.

Chlorine Creek

Plum Grove residents who live next to Colony Ridge also report the strong smell of sewage and chlorine coming from a new sewage treatment facility along Maple Branch a quarter to a half mile away. TCEQ fined the company that provides these services not long ago for the illegal discharge of 48,000 gallons of raw sewage into the same creek from a lift station.

Sewage treatment plant creating strong odors for Plum Grove residents as well as those in Colony Ridge itself.
Wastewater from this plant is apparently discharged into Maple Branch just inside the tree line at the top of the frame.
The discharged water has a heavy chlorine smell to it. All life in the creek seems to have died according to residents. That includes, fish, tadpoles, minnows, etc.

Michael Shrader, a Plum Grove resident who lives adjacent to Maple Branch, has affectionately renamed it Chlorine Creek.

HUD Approves New GLO Plans for Disaster Funding

On 11/4, Texas Land Commissioner George P. Bush announced that the US Department of Housing and Urban Development (HUD) approved two state action plans detailing the distribution and eligible uses of more than $285 million. The Community Development Block Grant Disaster Recovery (CDBG-DR) funds will assist in long-term recovery efforts following severe flooding in 2018 and 2019 in South and Southeast Texas. To view the action plans, please visit recovery.texas.gov/action-plans. To expedite the recovery process, the GLO will directly administer and oversee the funds.

TWDB Accepting FEMA Flood Mitigation Assistance Grant Requests

This one affects government officials in Cities, Counties, Special Districts, etc.. FEMA’s Flood Mitigation Assistance (FMA) grant program provides federal funding to help communities pay for cost-effective ways to reduce or eliminate the long-term risk of flood damage to flood prone structures that are insured under the National Flood Insurance Program. FMA program funds can be used for planning and projects. The deadline to apply to the Texas Water Development Board is December 1, 2020. For more information, please visit www.twdb.texas.gov/flood/grant/fma.asp.

FEMA Program Helps Enforce Building Codes, Floodplain Management

FEMA announced the release of a policy to provide communities with resources to enforce building codes and floodplain management following a major disaster declaration. The “Building Code and Floodplain Management Administration and Enforcement” policy can provide funding for the first 180 days following a major declaration for:

  • Costs associated with extra hires or contracted support
  • Reviewing and processing building permits and occupancy and compliance certificates
  • Conducting building inspections and initial substantial damage field surveys
  • Reviewing disaster-related development in the floodplain
  • Providing educational services to the public on floodplain requirements.

The policy is a result of the Disaster Recovery Reform Act of 2018, Section 1206. This policy applies to all major disaster declarations declared on or after August 1, 2017.

Climatologist Explains La Niña’s Impact on Texas

This interesting article in the TWDBs Texas Water Newsroom explains how La Niña can bring both droughts and hurricanes to Texas. It’s a fascinating, well written article.

Texas Coastal Study

Remember to sign up for one of the Army Corps presentations on the Texas Coastal Study virtual public meetings. Even if you live inland, the region’s economy depends on protecting the infrastructure ringing Galveston Bay.

Goodbye to Eta

CBS aired a chilling story tonight about the floods brought by Hurricane Eta. The storm dumped up to 7 inches of rain on the Carolinas. It washed out roads and bridges. In fact, a reporter was standing on one bridge when pieces of it started to fall into the raging floodwater. Very dramatic footage if you missed it.

Eta nearly tied Gordon for the longest hurricane on record. Jeff Lindner, Harris County Meteorologist, says that had the storm lasted until tomorrow, it would have taken the longevity record.

Posted by Bob Rehak on 11/12/2020

1171 Days since Hurricane Harvey

The thoughts expressed in this post represent opinions on matters of public concern and safety. They are protected by the First Amendment of the US Constitution and the Anti-SLAPP Statute of the Great State of Texas.

New Drone Shots Reveal Need for Better Flood Control in Liberty County

Since June, I’ve posted about problems in the Colony Ridge development in Liberty County. Among them: the washout of FM1010 where it crosses over Rocky Branch. Authorities have closed the busy road which provides access to Colony Ridge for three years, forcing tens of thousands of residents to seek alternate access routes, such as FM1485 and FM2090.

However, it’s difficult to see all the damage. So today I took a drone and captured some previously unseen details.

Colony Ridge drainage ditch leading to Rocky Branch contributed to washing out FM1010 at far end of ditch.

Lack of Functional Detention Capacity Likely Contributed to Washout

The damage is likely the result of inadequate, poorly engineered, or poorly maintained detention. Another contributing factor: a steep drop in elevation as water leaves the massive ditch (see above) in Colony Ridge and descends through a wooded area toward FM1010. That drop accelerated more water than should have been traveling down Rocky Branch, an East Fork San Jacinto tributary. As a result, floodwaters swept trees and other debris downstream.

One Thing Leads to Another

The debris:

  • Clogged culverts under the road…
  • Then, when the roadbed became a dam…
  • …Water churned through the roadbed next to the culverts…
  • …And deposited more “beaver dams” downstream…
  • …that, in turn, contributed to the flooding of surrounding homes.

Years of Neglect Still Ignored

Amazingly, no one in Liberty County corrected these problems after Harvey. As a result, many homes flooded again in 2019, during heavy downpours on May 7th and September 19th. The problems still have not been fixed. See the pictures below. I took them this afternoon.

Just yesterday, I had lunch with a couple who were considering moving to Liberty County because they were seeking a quieter lifestyle. I told them about this story. They are reconsidering.

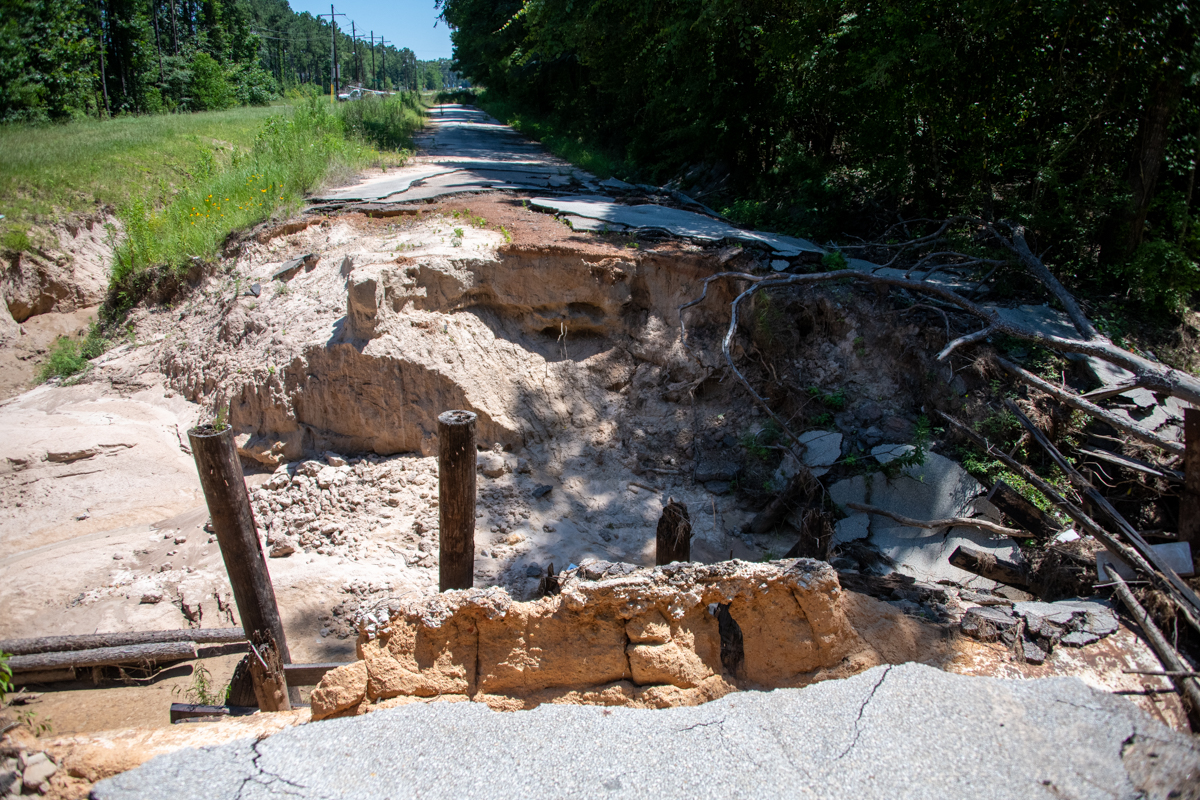

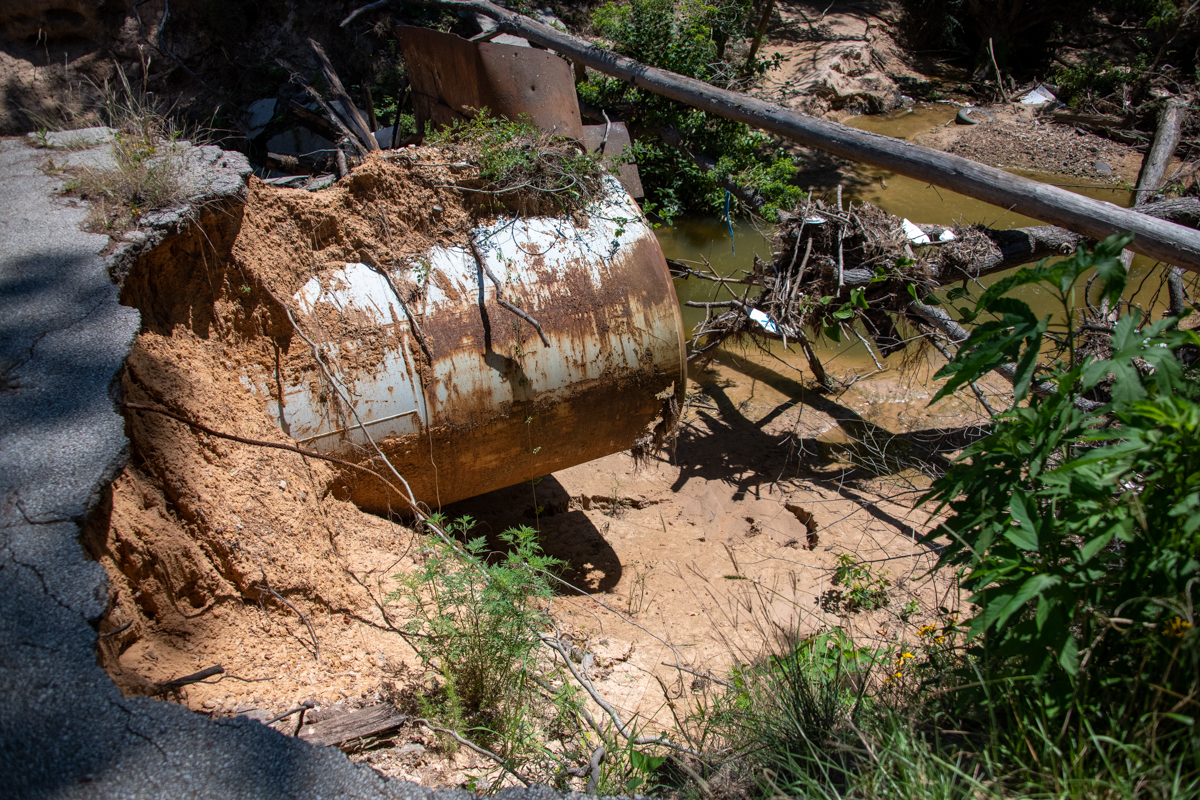

FM1010 Washout at Rocky Branch has not been repaired for more than three years. Note flood debris clogged in culvert. Also note straps around logs!
“Beaver dam” just downstream from culverts is building up and up, contributing to additional flooding.

Not All Business is Good Business

Colony Ridge has grown into the world’s largest trailer park in less than a decade. It brought more than its fair share of problems:

A hard lesson for some people to learn is that not all business is good business. Lax enforcement of regulations allowed Colony Ridge to grow out of control. Now county commissioners have a nightmare on their hands, cannot fix their problems, and cannot enforce their own regulations.

Posted by Bob Rehak on 10/25/2020

1153 Days since Hurricane Harvey

The thoughts expressed in this post represent opinions on matters of public concern and safety. They are protected by the First Amendment of the US Constitution and the Anti-SLAPP Statute of the Great State of Texas.

How Loss of Wetlands Led to War

In three years of writing about flooding, this is one of the most dramatic case studies I have seen about the value of wetlands. It starts with a developer clearing wetlands and ends with the developer at war with a neighboring town.

Wetlands as Protectors

Michael Shrader lived in a modest home in Plum Grove in Liberty County. It was an idyllic, rural lifestyle in many ways. He did tech work remotely while raising animals on his small plot of land near the East Fork of the San Jacinto and Maple Branch. Shrader never flooded for the first 29 years he lived in Plum Grove despite living on a creek. Not in 1994. Not in Allison. Not in Rita. And not in Ike.

Forests filled with wetlands surrounded him. Water ponded during heavy rains. Much of it soaked in and was absorbed by tree roots. The creeks ran clear.

Before Colony Ridge

In this 2008 Google Earth image, you can see the vibrant greens. And if you look closely enough on a desktop display, you can even see the ponds and wetlands east of FM1010.

Note area east (right) of FM1010.

For those reading on smaller displays, here’s the same image, but with data from the US Fish and Wildlife Service National Wetlands Inventory superimposed.

The bright, solid greens represent wetlands in the national inventory. Superimposition courtesy of Michael Shrader.

Then Came the Bulldozers

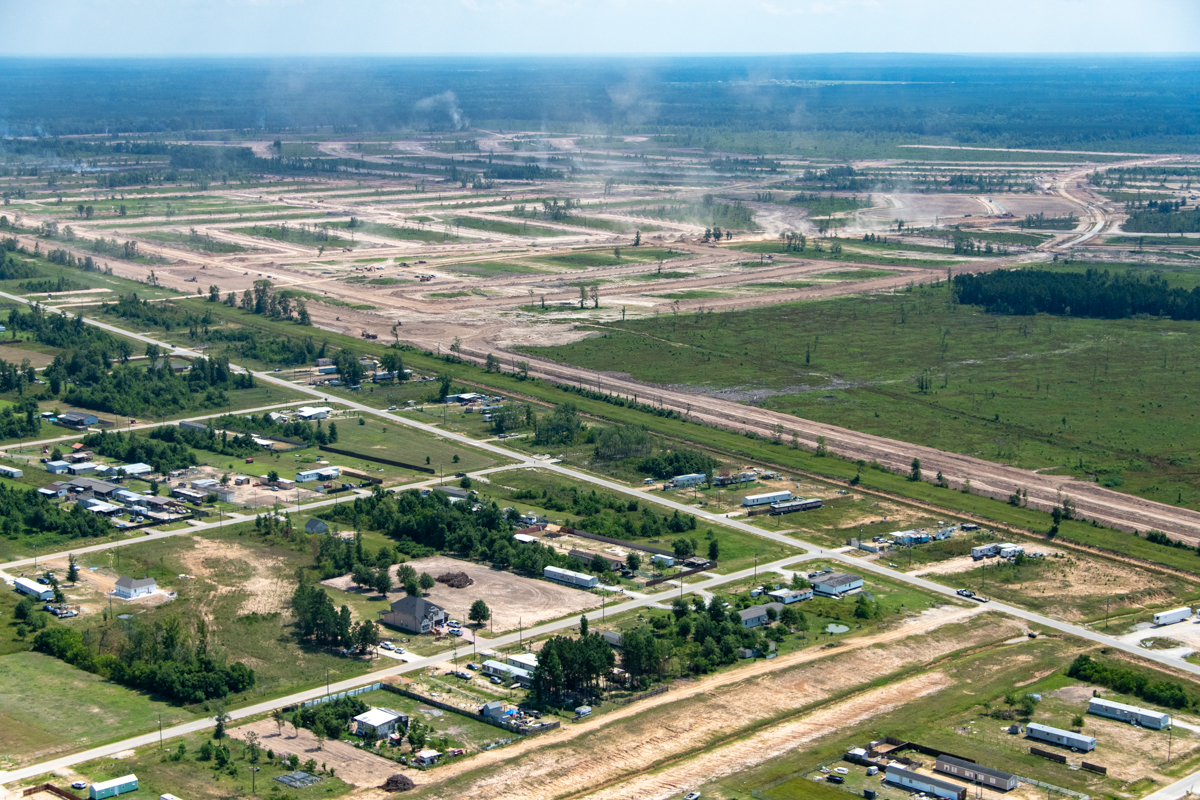

In 2016, the developer of Colony Ridge started clearing land and replacing wetlands with ditches that fed into Maple Branch. It runs right behind Shrader’s home. As the developer filled in more and more of the wetlands, water started getting higher in the creek after every rain, according to Shrader. Harvey, May 7th, Imelda: those were the high-water marks. And the low points in Shrader’s life. He flooded all three times.

By last year, the developer had replaced virtually all the wetlands by this.

By 2/23/19, most of the wetlands had been turned into streets with ditches in the world’s largest trailer park. Shrader lives on a stream that cuts across the NW portion of the grid.

Since the satellite image above was taken, even more forests and wetlands farther east and north have been replaced by what is now the world’s largest trailer park.

Eastern area in June, 2020.

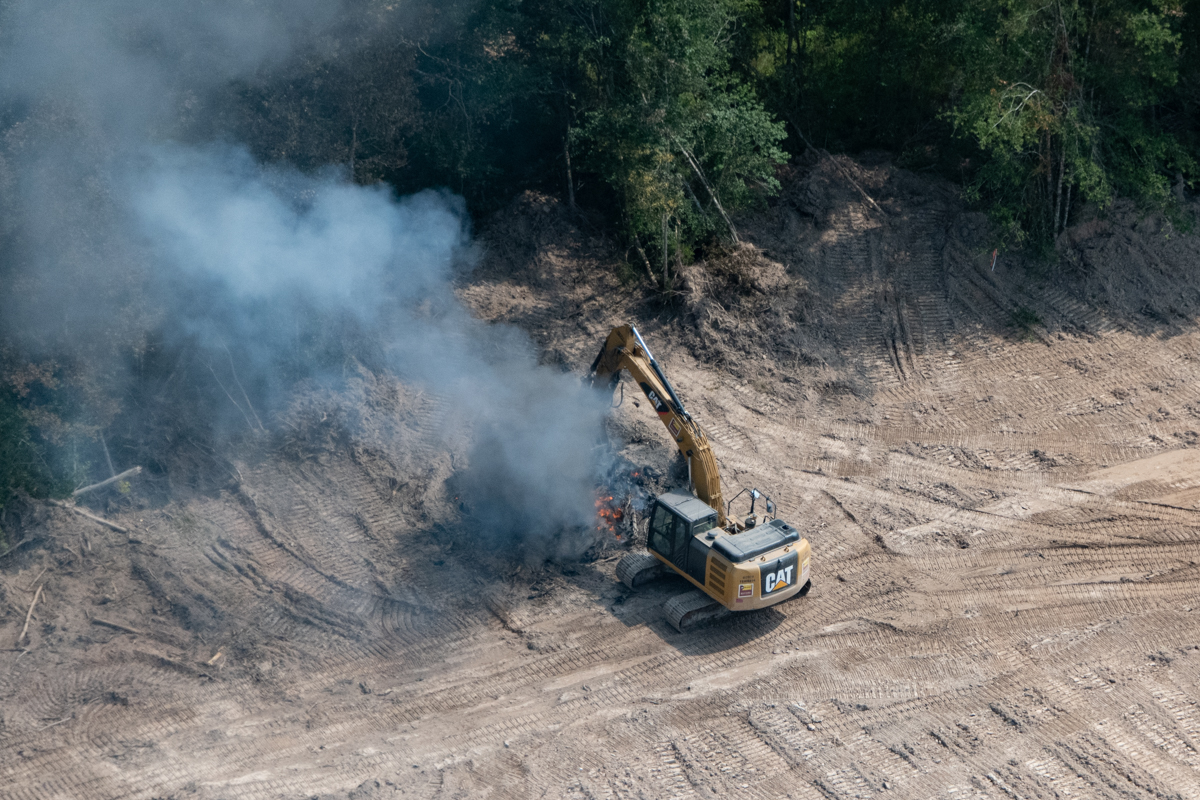

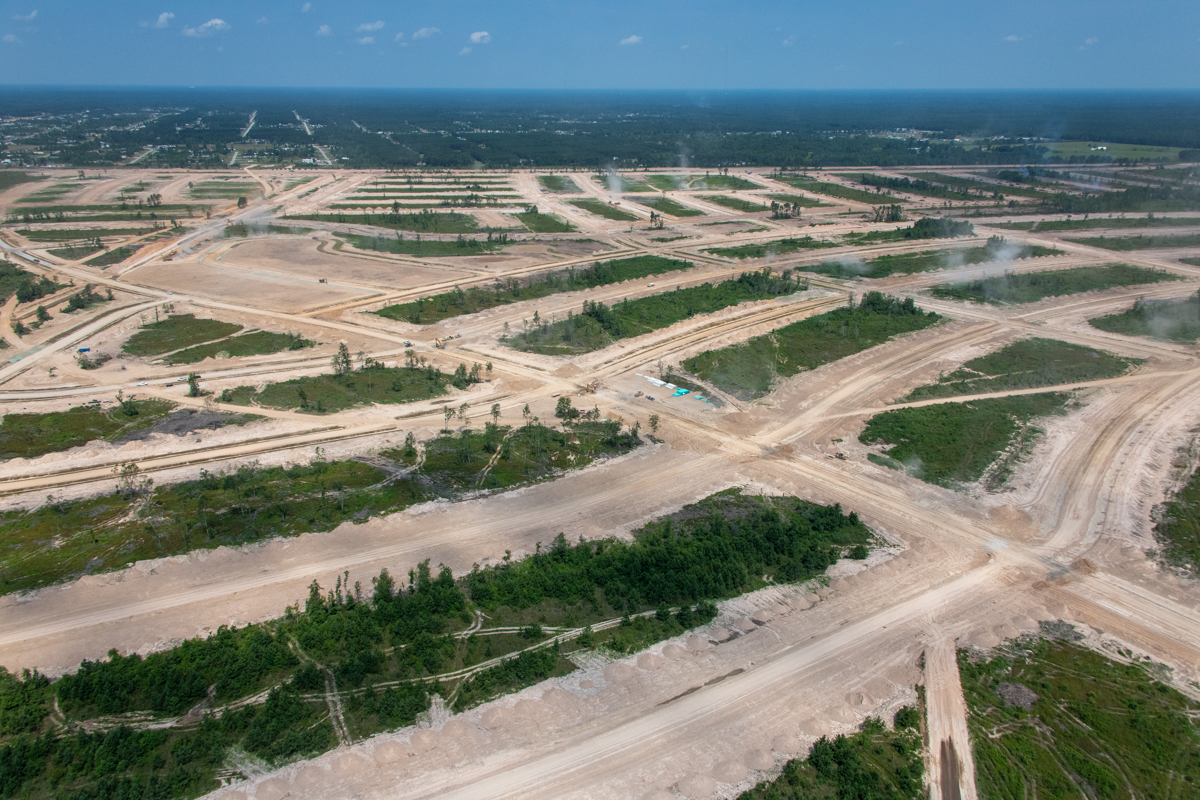

Slash and burn development practices at Colony Ridge. Photo June 2020. Note how contractors are draining wetland area on left.

Lives Disrupted

With the wetlands gone, Shrader’s house flooded in 2017 during Harvey (admittedly an extreme event), and twice in 2019. Not only did his house flood, so did most of Plum Grove, including the City Hall. Now, Shrader says, many homes are vacant.

The fence below, immediately downstream from the Camino Real Subdivision in Colony Ridge, was pushed over three times by the increased flow of floodwaters coming down Maple Branch. The owners of the red-roofed house bought this property just before the first of three floods.

Flooded Plum Grove home near Maple Branch and Colony Ridge. Owners stopped repairing the fence after the second flood.

The Domino Effect

To make matters worse:

Soon, Hollywood screenwriters will develop screenplays based on the Plum Grove experience and pitch them as “the next Erin Brokovich.”

Eroded drainage ditch in Colony Ridge that blew out FM1010 at far end. Three years after Harvey, the road still had not been repaired, much to the dismay of residents.

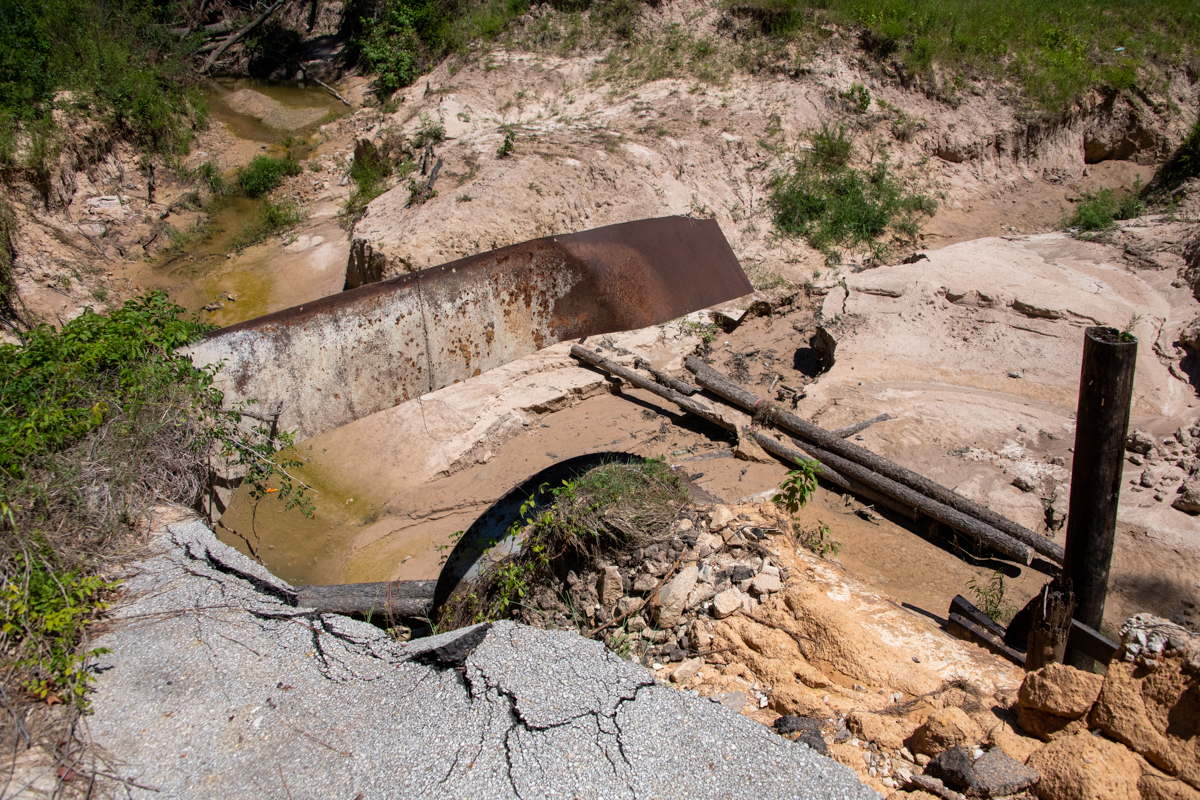

FM1010, one of the main roads into and out of the development, destroyed by out-of-control stormwater. The loss of this road has led to massive traffic jams on alternate access routes, such as FM2090.

Sadly, a little more respect for Mother Nature could have easily prevented all that trouble for the developer. One wonders whether the engineers and environmental consultants whom he hired to obtain permits served him well.

Posted by Bob Rehak on 10/22/2020

1050 Days after Hurricane Harvey and 398 since Imelda

The thoughts expressed in this post represent opinions on matters of public concern and safety. They are protected by the First Amendment of the US Constitution and the Anti-SLAPP Statute of the Great State of Texas.

TCEQ Blasts Colony Ridge, Says Construction Practices Could Adversely Affect Human Health

A seven-month-long TCEQ investigation of Colony Ridge construction practices resulted in a 184-page report that confirmed allegations of erosion and silt flowing uncontrolled into ditches and streams. The investigation resulted in a “notice of enforcement.”

TCEQ Alleges Permit Violations Affecting Human Health

TCEQ found the Colony Ridge developer in violation of its Construction General Permit for failure to install even minimum controls such as silt fences and vegetative buffer strips.

As a result, the report says the developer failed to prevent discharges that “contribute to a violation of water quality standards” and that have “a reasonable likelihood of adversely affecting human health or the environment.”

Investigators found unstabilized and unprotected drainage channels connecting 3,678.69 acres of disturbed land to unprotected streams and creeks. Sediment now almost completely fills some of those streams. They lead to Luce Bayou and and the East Fork San Jacinto River, which empty into Lake Houston, the source of drinking water for 2 million people.

Lack of Construction Best Management Practices

Colony Ridge’s Construction General Permit does not authorize discharges into Texas surface waters. Yet investigators found:

  • Drainage ditches with unstabilized soil on their sides
  • A drainage ditch with completely destabilized sides
  • Sediment deposition in multiple creeks
  • One creek channel almost completely filled by sediment
  • Culverts blocked with sediment
  • A washed out road
  • Water samples with elevated levels of dissolved and suspended solids as high as 1370 milligrams/liter (suspended) and 6360 (solid)…
  • ...All tied to inadequate or non-existent best management practices

See photos below.

Self-Reports in Stark Contrast to TCEQ Report

In contrast, the construction superintendent’s own inspection checklists (pages 51-78) rated virtually all erosion-prevention measures that the company did employ as “acceptable.” However, he also indicated that the company did not use most common protective measures, such as vegetation, sod, silt fences and detention basins; claiming they were “not applicable.” His report on 2/19/20 contained a note indicating the construction site “Looks good.” His last weekly report before the complaint that triggered the investigation found no “action items.”

Get the Picture

Pages 139 to 159 of the report (Attachment 13) and pages 167-171 (attachment 17) show photographs of almost five dozen violations that contradict the construction manager’s reports.

Below is a sampling of ten photos from the report. The TCEQ investigator took them all on 6/16/2020. He also provided the captions. Page numbers refer to the full TCEQ report.

Downstream view of Rocky Branch Creek. Washed out road in background. Photo 2 out of 57. Page 141.
Destabilized banks along Long Branch Creek and sediment deposition in creek channel. Note: the creek channel almost completely filled in by sediment. Photo 17 of 57. Page 146.
Unstabilized drainage channels in Section 7 that are tied into Long Branch Creek. Photo 20 of 57. Page 147.
Area surrounding Long Branch Creek destabilized with no BMPs installed around the creek. Note unstabilized sediment piles next to the creek. Photo 30 of 57, Page 151.
Area surrounding Long Branch Creek destabilized with no BMPs installed around the creek. Note unstabilized sediment piles next to the creek. Photo 32 of 57, Page 151.
Sediment and debris in cement culvert that allows Long Branch Creek to flow underneath Section 5 entrance road. Photo 40 of 57. Page 154.
Sediment and debris in cement culvert that allows Long Branch Creek to flow underneath Section 5 entrance road. Photo 41 of 57. Page 154.
Inadequate BMPs in drainage ditch that leads to Long Branch Creek. Note: Undercut silt fence. Photo 44 of 57, page 155.
Sediment deposition in unnamed creek channel right before Long Branch Creek. Note sediment line on cree. Sediment line is demarcated by pocket knife in red circle. Photo 48 of 57. Page 156.
Sediment in a drainage ditch that is tied into an unnamed creek. Note over-capacitated silt fence. Photo 53 of 57. Page 158.

Personal Observations Corroborate Report

Based on personal observations, I don’t think the investigator exaggerated. On the contrary, he may not have captured the full scope the hazards. Some can only be seen from the air. As luck would have it, I flew a helicopter over Colony Ridge on the same day the investigator captured his photos. Here are two from the air and one from the ground.

Washed out ditches abounded.
The developer was clearing more land before previously developed areas could be stabilized.
Silt fence being propped up to allow raw sewage to flow underneath it into Luce Bayou, which empties into Lake Houston.

Other Strangeness

Colony Ridge hired Merit Professional Services in Flower Mound, a Dallas/Fort Worth suburb. Merit obtains stormwater pollution prevention permits and also provides stormwater inspection services. However, according to the complainant in this case, Merit claimed they only provided the permit, but not inspection services. Lack of local oversight may have been a large part of the problem.

Page 182 of the TCEQ report contains an August 12, 2020, memo from Landplan Engineering to the investigator. It states that, “Going forward, Colony has switched to Double Oak since they are headquartered in the Houston Area.” Double Oak provides the same services and then some. Their website shows they offer construction, erosion control and stormwater management.

Ironically, Double Oak Construction is a defendant in the Elm Grove lawsuits against Perry Homes and its contractors on the Woodridge Village project in Montgomery County. That case involves many of the same issues involved in both the TCEQ report and the City of Plum Grove’s lawsuit against the developer of Colony Ridge. The report does not mention exactly when Double Oak started working for Colony Ridge.

For the full TCEQ report, click here. Caution: large download, 28 megs, 184 pages.

Posted by Bob Rehak on 10/16/2020

1144 Days after Hurricane Harvey and 393 After Imelda

The thoughts expressed in this post represent opinions on matters of public concern and safety. They are protected by the First Amendment of the US Constitution and the Anti-SLAPP Statute of the Great State of Texas.

Hidden Cost of Fecal Contamination: Removing It

Fecal contamination of water can have many health consequences. It can also have consequences for your wallet in terms of hospital bills and water treatment costs. The expansion of Houston’s Northeast Water Purification Plant will cost $1.765 billion.

Persistent Sewage Leaks at Colony Ridge

Yesterday, I reported on 48,000 gallons of sewage documented by the TCEQ in ditches and streams near Colony Ridge in Liberty County just before Imelda struck last year. Stormwater from that area flushes into the San Jacinto East Fork and Lake Houston. Any sewage not cleaned up from that particular spill likely wound up in the main source of the City of Houston’s drinking water.

Had it been a one time affair, it could have been explained as an accident. But the problems recur. Neither the developer, sewage contractor, County, nor State have managed to eliminate the frequent leaks.

Sewage Coverup

In fact, yesterday’s post contained photographs of one incident where the leak remained. A bulldozer had simply covered up sewage that leaked into the ditch adjacent to a road. It was as if the people responsible were saying, “out of sight, out of mind.” The sewage leak remains, though, and without remediation, the pollution will eventually wash down toward Tarkington Bayou, which also enters the East Fork.

Putting Water Test Results in Context

Two recent tests of samples taken within Colony Ridge by Eastex Environmental Labs showed fecal contamination on the order of 3,000 to 5,000 “colonies” per 100 milliliters. Just what does that mean?

One-hundred milliliters equals a little more than six tablespoons.

A website called Water Research Center contained a very helpful article that explains what fecal contamination can do in those concentrations. In addition to concentrations, it also discusses sources of contamination, health/environmental consequences and more. It said that the current US EPA recommendations for:

  • Body-contact recreation (i.e., swimming, diving, water skiing) is fewer than 200 colonies/100 mL
  • Fishing and boating is fewer than 1000 colonies/100 mL
  • Intake at water treatment plants for domestic water supply is fewer than 2000 colonies/100 mL.

The drinking water standard AFTER TREATMENT is less than 1 colony total coliform bacteria/100ml with E. coli ABSENT.

The presence of fecal contamination is an indicator that a potential health risk exists for individuals exposed to this water. Diseases and illnesses that can be contracted in water with high fecal coliform counts include but are not limited to:

  • Typhoid fever
  • Hepatitis
  • Gastroenteritis
  • Dysentery,
  • Ear, nose, eye and cut infections.

Cost to Make Drinking Water Safe

On my last flight over Lake Houston, I flew over the expansion of the Northeast Water Purification Plant. Until you’ve seen this in person, it’s hard to believe how large it is.

The new plant will quintuple the amount of pure, fresh water available to customers in this area. The City is adding 320 million gallons per day (MGD) to the existing 80 MGD capacity for a total of 400 MGD.

In addition to conventional treatment processes, the new plant will include an advanced oxidation process called ozonation. Ozonation helps disinfect water to help ensure that harmful organisms such as Giardia and Cryptosporidium are eliminated. Ozonation also helps eliminate taste and odor causing compounds.

The intake facility shown below will finish next year, but the plant itself won’t finish until mid 2025.

The cost of this project is $1.765 billion.

greaterhoustonwater.com

Photos of New Intake for Plant

All aerial images below were taken on 6/16/2020. While the plant expansion will make drinking water safe, it won’t make all the water in Lake Houston safe as long as people allow fecal contamination to leak into it.

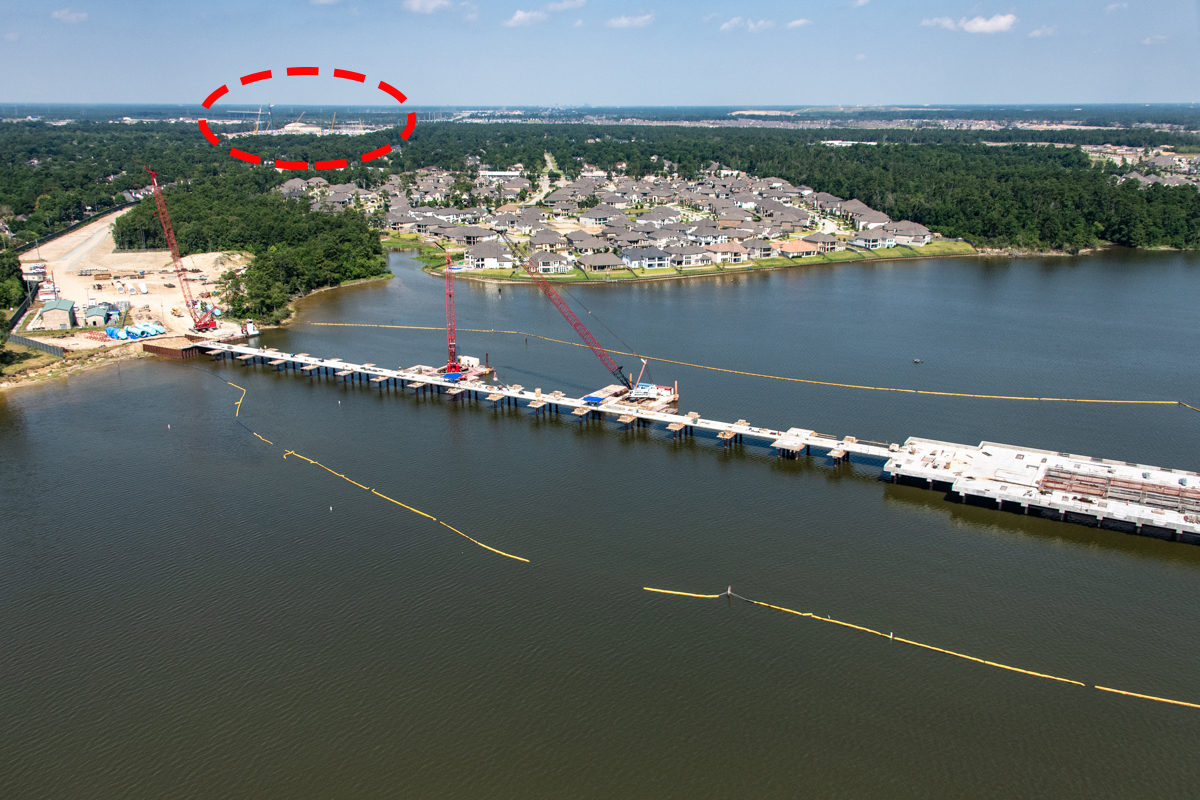

The expanded plant lies more than a mile from the intake in the foreground.
The expansion will occupy approximately 150 acres of the City’s 252 acre site.
The new intake pump station will be located approximately 900 feet from the shore of Lake Houston to draw water from a deeper depth than the current intake. That, say the partners, will alleviate some water-quality challenges.
Construction of the intake pump station should finish in about a year.
The pipelines carrying water back to the treatment plant will measure 108″ in diameter.
That’s nine feet tall. About the height of that cargo container used as a construction office! Photo cropped and enlarged from wider image above.

The City and its partners have produced an easy-to-understand, yet informative website that documents construction of this project.

This PowerPoint, posted as part of the latest update is packed with photos that may inspire your kids and grandkids to become engineers someday. It shows the meticulous planning and attention to detail that goes into such a project.

Objectives for Project

According to the web site, the project has two objectives:

  • To support the region’s growth
  • To reduce subsidence

But the partner’s sell themselves short. The fundamental reason is to provide safe, clean drinking water, despite the pollution from places like Colony Ridge.

For the record, lest you think I’m picking on Colony Ridge, there are many other sources of water pollution. They include livestock, leaky septic tanks, runoff from streets and more.

We can all help by reporting spills and leaks to City, County and State authorities when we see them.

Posted by Bob Rehak on 6/24/2020

1030 Days after Harvey and 279 since Imelda

The thoughts expressed in this post represent opinions on matters of public concern and safety. They are protected by the First Amendment of the US Constitution and the Anti-SLAPP Statute of the Great State of Texas.

48,000 Gallons of Fecal Contamination Found in Liberty County’s Colony Ridge Ditches, Streams; Problems Persist

Last year, the TCEQ found sewage coming from a lift station and sewers in Liberty County’s Colony Ridge development, the world’s largest trailer park. TCEQ estimates Quadvest, the water and sewer supplier in Colony Ridge, released as much as 48,000 gallons of sewage into Maple Branch Creek, a tributary of the East Fork, at a minimum, causing a fish kill (Page 51).

More recent independent laboratory testing has verified fecal contamination in at least two drainage ditches in Colony Ridge. Moreover, residents claim they have found fecal contamination in other Colony Ridge ditches and streams, too. It’s not clear whether those additional spills have been tested.

During heavy rains, fecal contamination can quickly wash downstream and eventually wind up in Lake Houston.

A major concern of residents is the frequency of sewage leaks.

Results of TCEQ Investigation

Maple Branch Creek carried black water into the East Fork.
In addition to the stench, neighbors noticed a fish kill. These two photos correspond to a TCEQ investigation in July 2019.

TCEQ cited Quadvest L.P., the sewage and water provider for Colony Ridge, for “unauthorized discharge of wastewater which resulted in a documented serious impact to the environment.”

A month after TCEQ documented this discharge, 33 inches of rain fell on nearby Plum Grove during TS Imelda.

More Recent Tests by Eastex Environmental Labs

Eastex Environmental Labs in Cold Springs collected and analyzed at least two sets of samples this year. The first was for Liberty County. The second was for Maria Acevedo, a concerned resident.

Both show significant fecal contamination.

First Eastex Report shows Fecal Contamination

Here are results of the first test and pictures of the sewage.

The first site on a ditch next to County Road 5023 showed 3090 and 3130 units of fecal coliform, with none detected in the control sample. Maria Acevedo photographed this problem on June 4, 2020.

Photo on June 4, 2020 by Maria Acevedo on CR 5023 where Eastex took samples.
Sludge oozing down same ditch.

Second Eastex Report Shows VERY STRONG Fecal Contamination

Samples collected and analyzed by Eastex Environmental Labs, eliminating chain of custody issues.

In the second lab report obtained by ReduceFlooding.com, Eastex Labs found 5120 units of fecal contamination per 100 milliliters in Frances Ditch on 6/19/2020. A second sample taken from the same location found 4870. A control sample detected none.

The lab told Acevedo that they found “very strong fecal contamination.”

Maria acevedo

Residents who wish to remain anonymous for fear of retaliation, contacted me about this site a week before Eastex sampled it.

Location of Second Sample Photographed on 6/12/2020

I photographed that ditch on Friday, 6/12/2020. It’s on the southeast corner of Colony Ridge. While there, I photographed cloudy water bubbling up out of the ground and running down a ditch toward Tarkington Bayou (see photos below).

Foul water and trail of greenish-brown sludge (left) bubbling up through ground…
…then flowed into ditch toward Tarkington Bayou at bottom of hill.
Close up of water/sludge in ditch.
Silt fence in ditch was propped up, ensuring foul water could ooze under it.
Farther down the ditch, contaminated water was pooling, and turning green and black.
In places, it had dried due to extreme heat. Temp was in 90’s.

Photos Taken Two Days Later Show Attempted Coverup

I came back two days later on 6/14 to explore the same area some more. The foul water still bubbled up, but someone with a bulldozer attempted to cover up the evidence in the ditch.

Sludge and contaminated water bubbled up from same hole on 6/14/2020.
However, the evidence in the ditch near the road had been freshly covered up by a bulldozer.

The Leaks Go On

If the incidents above were isolated, one might dismiss them. But they seem to be part of a larger, recurring pattern that neither Colony Ridge, Quadvest, nor Liberty County have stopped.

A resident says this sanitary sewer was leaking for more than two months into a ditch in a residential neighborhood and stunk like sewage. Photo by Maria Acevedo on CR5006 on March 18, 2020.

The largely Hispanic residents complain among themselves. But few reportedly file reports for fear of raising their profiles with authorities and perhaps answering difficult questions in court. Meanwhile, the sewage leaks go on. Both Colony Ridge residents and those downstream pay the price.

Posted by Bob Rehak on 6/23/2020

1029 Days since Hurricane Harvey and 278 since Imelda

The thoughts expressed in this post represent opinions on matters of public concern and safety. They are protected by the First Amendment of the US Constitution and the Anti-SLAPP Statute of the Great State of Texas.

“The Developers Are Coming! The Developers Are Coming!”

Actually, the developers are already here and licking their chops over the extension of the Grand Parkway (SH 99).

My riff on Paul Revere’s famous line is not meant so much as a statement of impending doom as about the need for caution.

Certainly, there are many honorable developers who try to build high-quality communities for people without adversely affecting downstream residents. I don’t wish to malign a whole profession. Nor do I want to fail to acknowledge the many wonderful communities they have built in this area.

But there are also some developers who put profit before people. They try to cut corners wherever they can and hope that nobody will notice. Especially regarding flood control. It’s expensive and easy because most people don’t understand it.

Grand Parkway Coming Soon To Wetlands Near You

The construction of State Highway 99, aka the Grand Parkway, has opened up vast new areas on the outskirts of Houston to developers. Many of those areas consist of wetlands and forests.

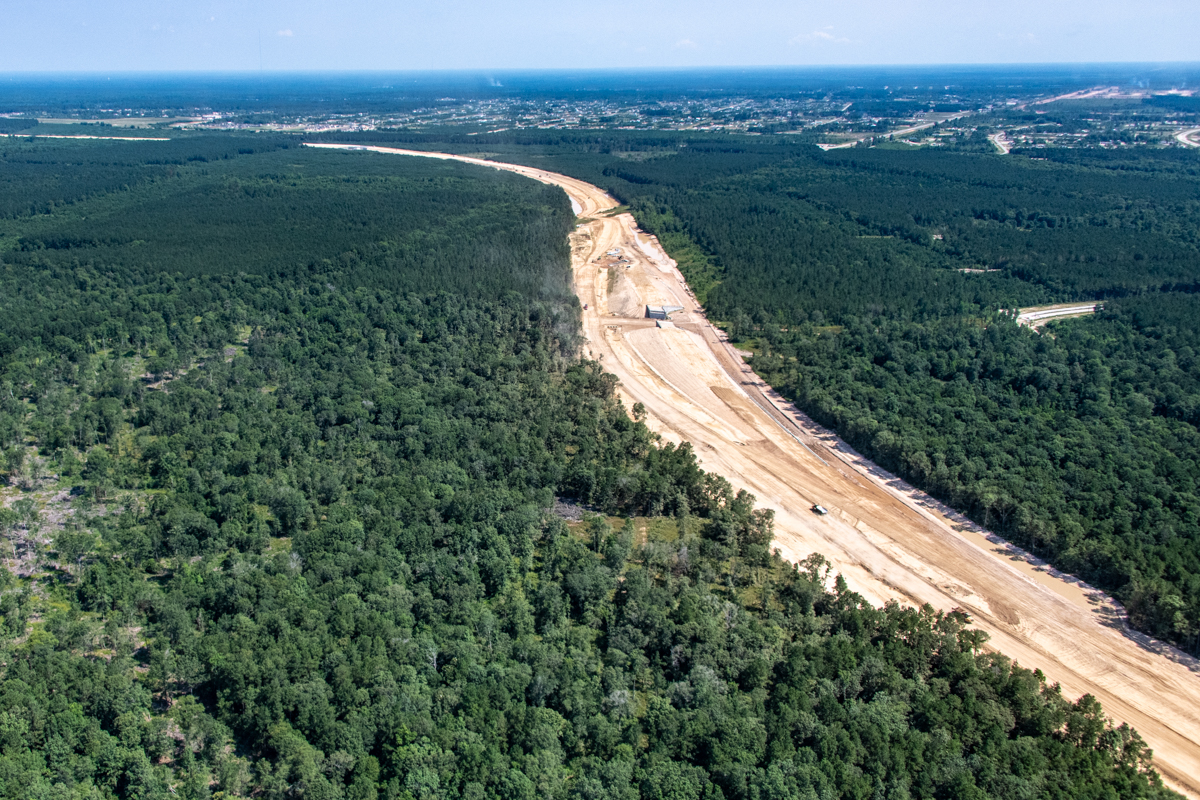

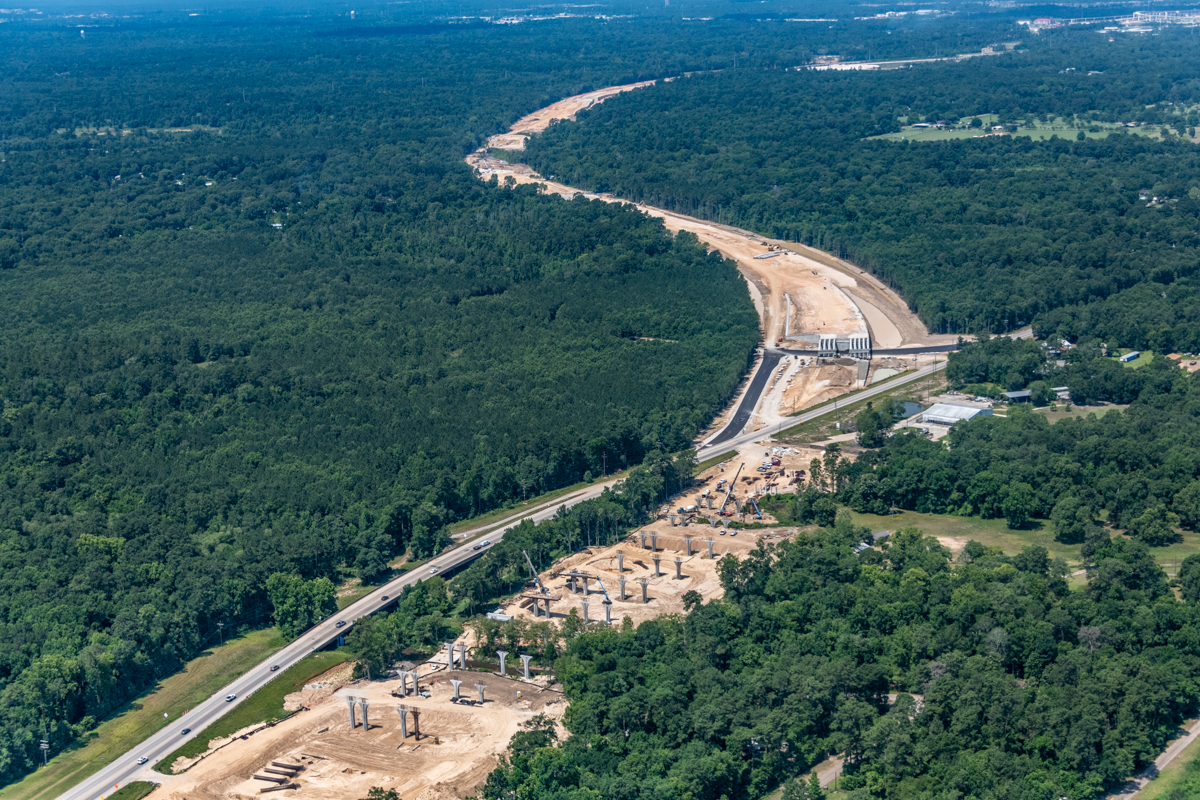

TxDoT is currently prepping land for Section H of the Grand Parkway almost all the way to FM 1960 on the east from US59.
From USGS. Wetlands near the path of Grand Parkway extension. Compare with maps above and below.

Visible Difference in Development Density Where SH99 Completed

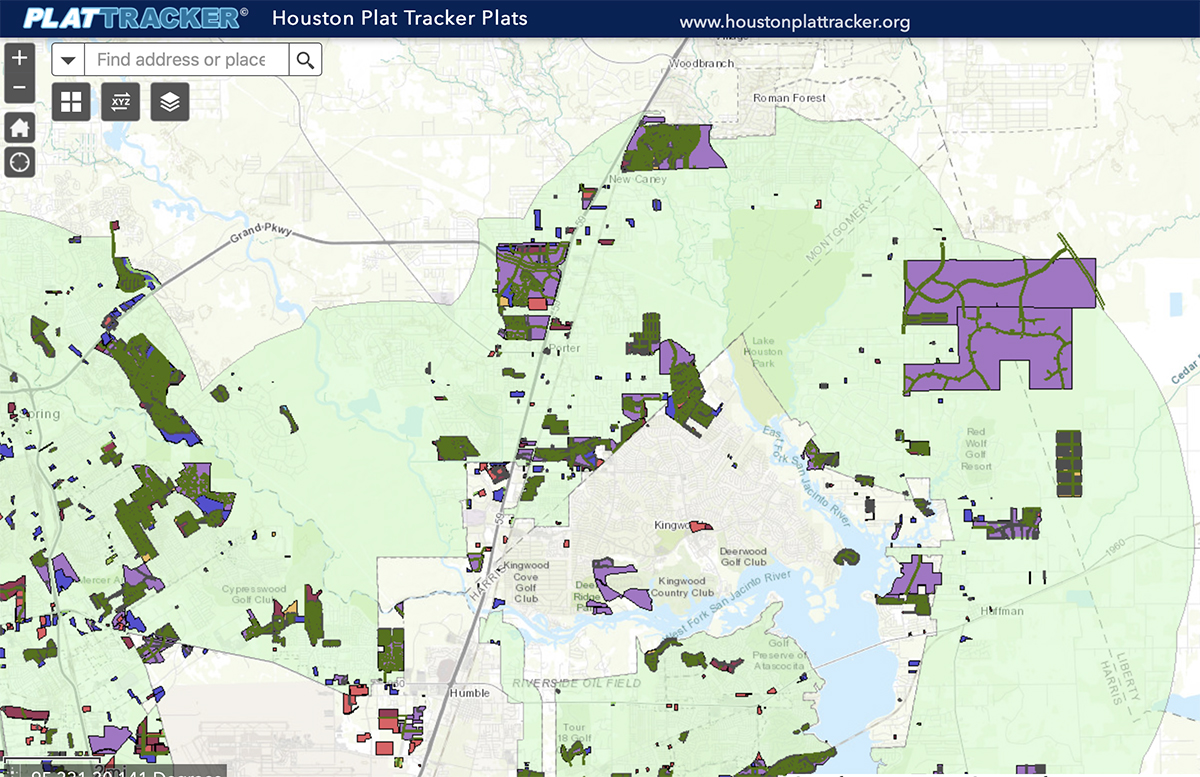

The map below shows permit applications in the north Houston area. Compare the density of projects around sections of the Grand Parkway that have already been completed (left) with the areas on the east where the concrete has not yet reached.

This map shows permit applications in the northeast Houston area, both within the City and its ETJ (extra territorial jurisdiction. The Colony Ridge development featured below is outside the ETJ (green area) in the upper right of the map above.

Developers have even more projects underway outside the City’s ETJ (not shown on the map above).

How Development Can Affect Flooding

Kingwood residents have seen how one developer can contribute to flooding hundreds of homes. Last year, Perry Homes clearcut 268 acres north of Elm Grove before installing detention ponds. Hundreds of Elm Grove homes then flooded on May 7 and again on September 19, during Tropical Storm Imelda.

Below are recent photos of a massive 10,000 acre development in Liberty County near Plum Grove. It is about to become a 15,000 development now, thanks in part to Grand Parkway access. And yet it has only one small traditional detention pond.

Detention ponds slow down the rate of runoff to compensate for the loss of trees, wetlands and ground cover that have been replaced by streets and rooftops.

Their goal: to prevent downstream flooding.

Colony Ridge Accounts for All Growth in Liberty County In Last Decade

Colony Ridge can account for all the growth in Liberty County in the last decade. Below are some photos of Colony Ridge and its expansion near Plum Grove. The approach of SH99 will make it more accessible and therefore more attractive (at least from one point of view).

All aerial photos below were taken on 6/126/2020.

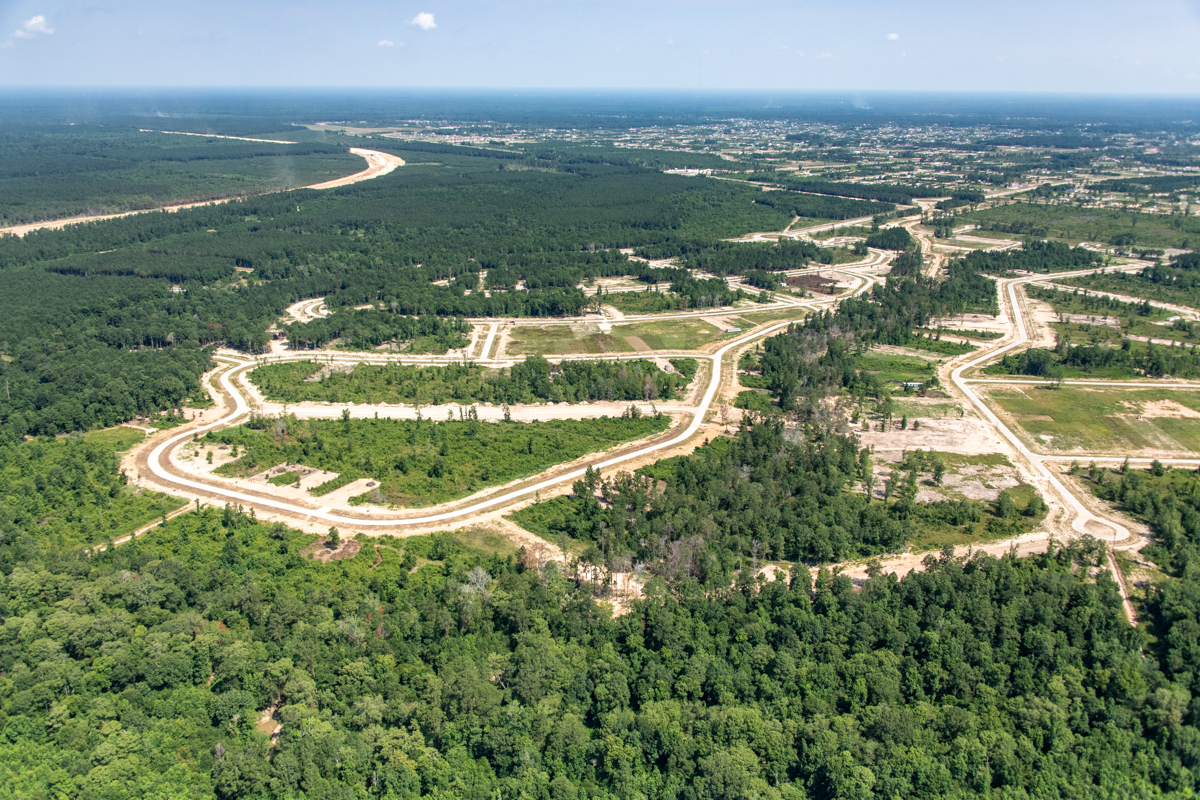

Looking north across the Grand Parkway extension toward Colony Ridge in Liberty County near Plum Grove.

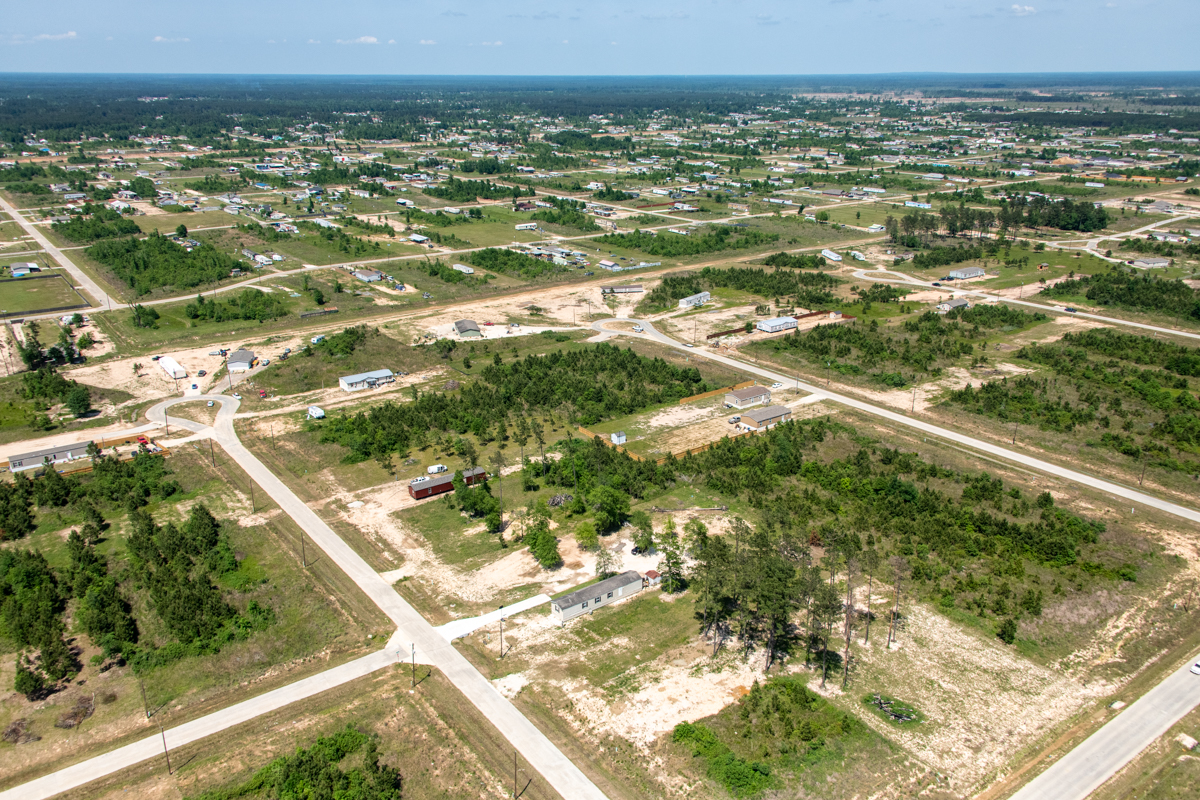

Just north of the Grand Parkway (upper left), you can see roads going in that will accommodate even more manufactured homes, aka trailer homes.
The developer puts in roads, ditches, water and sewer. Fire hydrants? Forget it.

Developer’s Marketing Strategy

The developer tries to pass as many costs along to lot buyers as he can to maximize profit. He targets Hispanics. Residents tell me that sometimes two or three families may live in one of the homes you see here.

Nobody knows the real population of Colony Ridge because many residents are reportedly undocumented and uncounted.

Site work before parking a home is the responsibility of site buyers, many of whom openly burn brush to clear their lots. Like the developer, they’re trying to cut costs.

Land of Fire and the Forgotten

Resident burning brush on his property last Sunday afternoon. Residents aren’t the only ones burning.
That smoke you see on the horizon is from dozens of brush fires set by the developer as he continues to clear land.
Here’s one still smoldering.
At this point, a major storm would bring the potential for uncontrolled erosion, just as it did in Woodridge Village in Montgomery County, above Elm Grove.
As dry as it has been lately, the developer is burning brush piles next to woodlands. That increases fire risk. The barren surface also accelerates runoff and erosion, increasing flood risk.
Note the haze and plums of smoke on the horizon and the vast expanse of exposed, packed dirt.
The smoke is coming from burning piles of brush, such as these. If a fire spread into surrounding woods, local volunteer fire departments would be overwhelmed.
No fire hydrants anywhere in sight.

If this were Houston, hydrants would be spaced at a minimum of every 500 feet. A firefighter told me that the spacing often depends of home values and population. Based on population alone, he believes this area should have hydrants.

One Small Detention Pond for 15,000 Acres

The developer has one detention pond (center) for the entire 15,000 acres. He relies on less efficient, in-ditch detention for additional capacity. Note the proximity to SH99 in the upper right.
There are no detention ponds anywhere in the new areas being cleared. This is reminiscent of Woodridge Village which contributed to the flooding of hundreds of homes in Elm Grove. But Woodridge was only 268 acres.
The developer relies on this and other drainage ditches to double as detention ponds in storms. But at the far end of this ditch…
…FM 1010 washed out during Harvey and destroyed one of the two major access roads into the development. The in-ditch detention failed. So has the county. The road has been out now for 1025 days, increasing the commute time for residents and the response time for firefighters.

Endless Loop of Construction and Destruction

State Highway 99 represents more than just a third loop around the City of Houston.

SH 99 will bring more developers and more people eager to escape downstream flooding issues.

Tapayer funded roads such as these create endless loops of construction and destruction. They are like a perpetual motion machine. Building one area floods another, causing people to move farther out and the cycle to repeat itself.

No one will admit it’s intentional, of course. The flooding is just a byproduct of greed. Cut a detention pond here. Substitute in-line detention there. Don’t bother planting grass to reduce erosion. Send your problems downstream. Let someone else worry about them.

One Chance

Do all developers think that way? Of course not. Many have principles and wonderful communities to show for them.

That notwithstanding, as one Splendora resident said, “They really only have one chance to get this right. If they screw this up, it will be almost impossible to fix and they will argue over who is going to pay for it for centuries.”

We are at that inflection point now.

Posted by Bob Rehak on 6/19/2020

1025 Days since Hurricane Harvey

The thoughts expressed in this post represent opinions on matters of public concern and safety. They are protected by the First Amendment of the US Constitution and the Anti-SLAPP Statute of the Great State of Texas.
